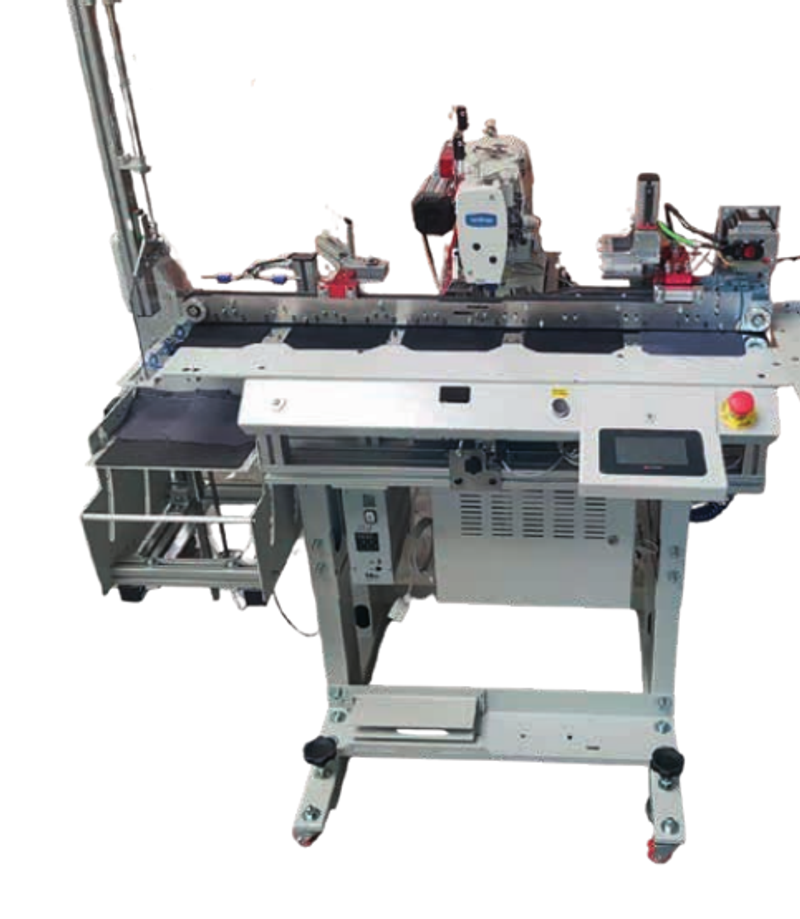

PH200CH-SIP / PH200LS-SIP — Automatic Pocket Hemming Unit
Unidade automática
Complete automatic unit for pocket hemming, combining top productivity with the best sewing quality. Belt fabric feeding with pressure and speed control, automatic thread cutter, quick folder change and auto alignment of the belt feeder device. Available in two versions: PH200CH-SIP, with a 3-needle chain stitch sewing head (Kansai), and PH200LS-SIP, with a 2-needle lock stitch sewing head (Brother). Auto feeder robot device available on demand for production without an operator (RPH ROBOT).
Features
- Auto feeder robot device available on demand (RPH ROBOT)
- ARRANGER 4.0 software for monitoring the production cycle
- Thread breakage sensors
- Quick change for folder and auto alignment
- New touch screen and control box
Technical Specifications
| Sewing Head PH200CH-SIP | Kansai NL 5803GPXP (chain stitch, 3 needles) |
| Sewing Head PH200LS-SIP | Brother T8720C-005-N64D (lock stitch, 2 needles) |
| Air Consumption | 0.8 liters/cycle at 5.5 bar |
| Power Supply | 220V single-phase, 50/60Hz, 0.5kW |
| Size and Weight | 147x100x156 cm — 255 Kg |
| Production (chain stitch) | 2,000 pockets/hour (1,000 pairs/hour) |
| Production (lock stitch) | 1,600 pockets/hour (800 pairs/hour) |
| Range of Use | Fold from 9 to 30mm |
Applications
Garment Parts
Pocket
